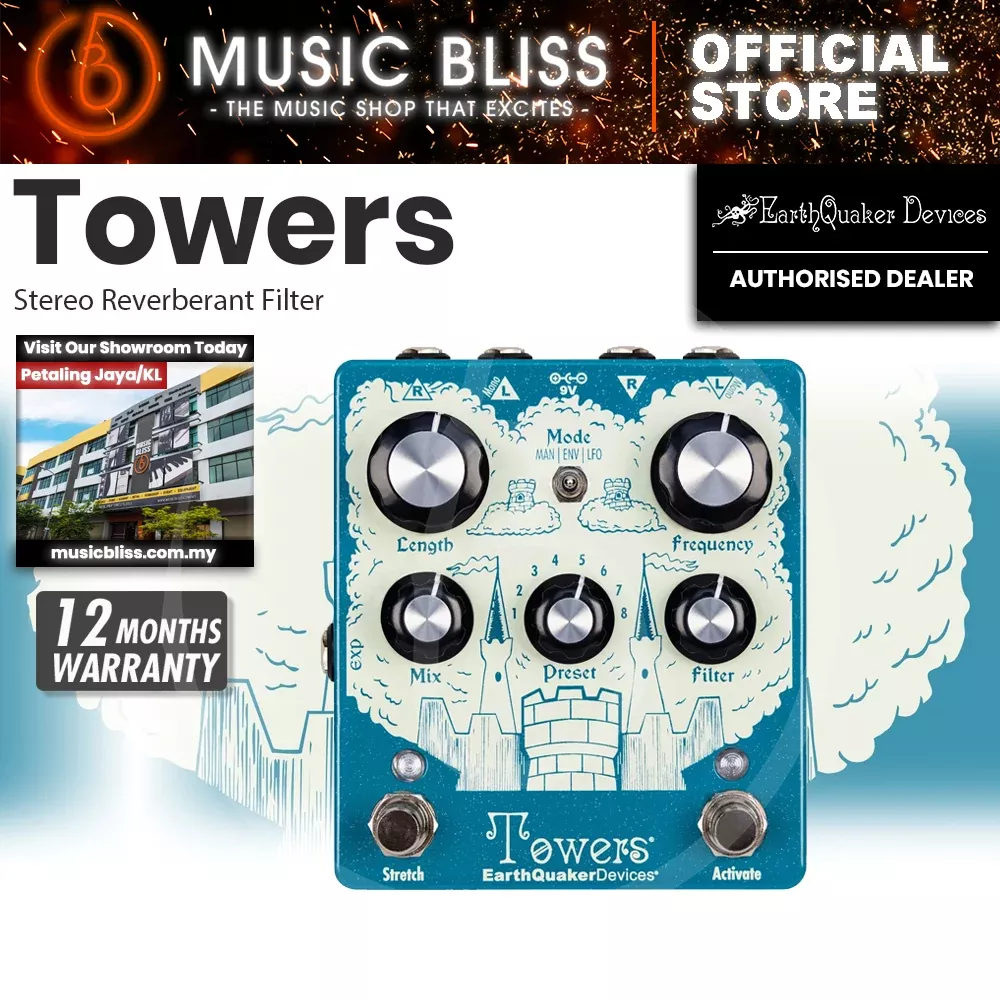

EarthQuaker Devices Towers Soundscape Generator Stereo Reverberant Filter

Description

EarthQuaker Devices Towers Soundscape Generator Stereo Reverberant Filter

Towers teleports your sound into a vast stereophonic expanse, weaving it into its unique resonant filtered feedback networks. Reflections hang in the air and move in and out of a sprawling multidimensional soundscape, where they don’t just fade away—they radiate, breathe and drift endlessly into the void. The filter frequency offers three distinct modes of navigation: Manual Mode puts the player in charge of the filter frequencies.Envelope Mode where playing dynamics breathe and morph into everchanging filter movements. LFO Mode where the player surrenders control to a slow-moving oscillator that sweeps across the stereo field.

FEATURES

• Mode: This is a 3-position toggle switch that changes the mode of operation.
• Length: Controls the length of the reverb – lower settings are shorter, higher settings are longer. This control also has a secondary function to adjust the speed of the Stretch feature.
• Mix: This sets the overall level of the effect, balancing the ethereal with the earthly.
• Stretch Footswitch: Stretch slows down the entire digital system of Towers. As a result, the reverb length is doubled, the spectrum of frequencies is altered and a pitch bending effect can be heard throughout the morphing process.
• Frequency: This controls the filter frequency and has several different functions depending on which mode is selected.
• Filter: Controls how much the resonant low pass filter is mixed into the reverb pathways, determining the depth of harmonic resonance.
• Preset: Selects which user preset to use in preset mode, allowing you to recall your favorite mystical configurations.
• Activate Footswitch: This turns the effect on and off.

SPECIFICATIONS

• Dimensions : 4.75 x 4.25 x 2.50 in. (121 x 108 x 64 mm) with knobs
• Current Draw : 85 mA
• Input Impedance : 500 kΩ
• Output Impedance : 100 Ω
• EXP Jack Internal Connections : Tip= Wiper (CV)| Ring= 3.3V | Sleeve= Ground

• Tails or Full Bypass Switching
  – Towers can operate in two different bypass states: Tails or Full Bypass. It comes factory set in Tails Mode which allows the reverb effect to naturally decay after the effect is bypassed and is indicated by a Green Activate LED. Full Bypass will cut the reverb effect completely when the effect is bypassed and is indicated by a Red Activate LED. Towers can operate in two different bypass states: Tails or Full Bypass. It comes factory set in Tails Mode which allows the reverb effect to naturally decay after the effect is bypassed and is indicated by a Green Activate LED. Full Bypass will cut the reverb effect completely when the effect is bypassed and is indicated by a Red Activate LED.

Product Dimension Shipping Weight: 0.5 kg
