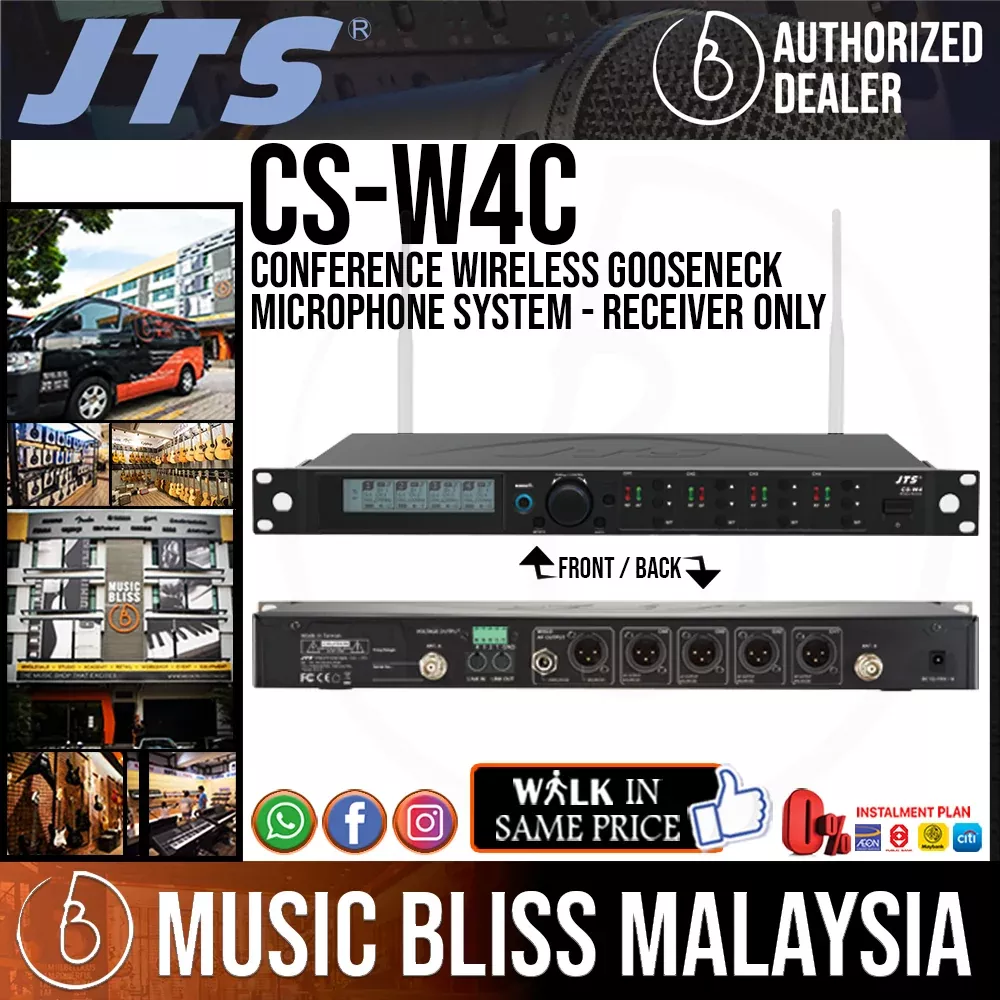

JTS CS-W4C Conference Wireless Gooseneck Microphone System – Receiver Only

Description

JTS CS-W4C Conference Wireless Gooseneck Microphone System – Receiver Only

CS-W4C is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit. It overrides other microphones. Logic setting of one CS-W4C receivers can be cascaded. A microphone with priority in one receiver will also have priority in a cascaded system. JTS patented REMOSET synchronizes all four microphones is of 108 MHz bandwidth. This feature allows more attendants to join the conference.

VIDEO

SPECIFICATIONS

• Frequency Preparation : PLL Synthesized Control
• Carrier Frequency Range : 470~960 MHz / 502.000 – 694.000 MHz (T band)
• Frequency Setting : 2.4G RF REMOSET
• Channel : 4
• Bandwidth : 36MHz
• S/N Ratio :>105dB(A)
• T.H.D : <0.6%@1KHz
• Sensitivity : -95dBm, S/N>80dB
• CMRR :>80 dB
• Audio Frequency Response : 80Hz~16KHz±2dB
• Antenna Connector : BNC (Female)
• Antenna Booster Power : DC12V/100mA
• Display : LCD+LED
• Controls : Power ON/OFF, Group, Channel, Frequency, Sensitivity, Key Lock, Volume, Output
• Attenuation(XLR), Frequency Scan(ON/OFF), Antenna Power, Display Setting, Language,
• Remoset ID Number, Reoset Setting, Priority Setting
• Audio Output Level : Ref: ±22.5KHz Dev@1KHz Tone | ψ6.3 Phone Jack: -10dBV | XLR Jack: -4dBV(Line), -24dBV(MIC)
• Audio Output Level : 600Ω
• Squelch : Pilot Tone & Noise Mute
• Output Socket : XLR Balanced Socket x5, φ6.3mm Unbalanced x1
• Automixer Control : 8PIN MINI DIN Input, 8 PIN MINI DIN Output
• Power Supply : DC12~15V/1A
• Dimension(mm) : 485(W) x 45(H) x 260(D)
• Note : Actual Product specifications may vary depending on model and region

Product Dimension Shipping Weight: 1.2 kg
