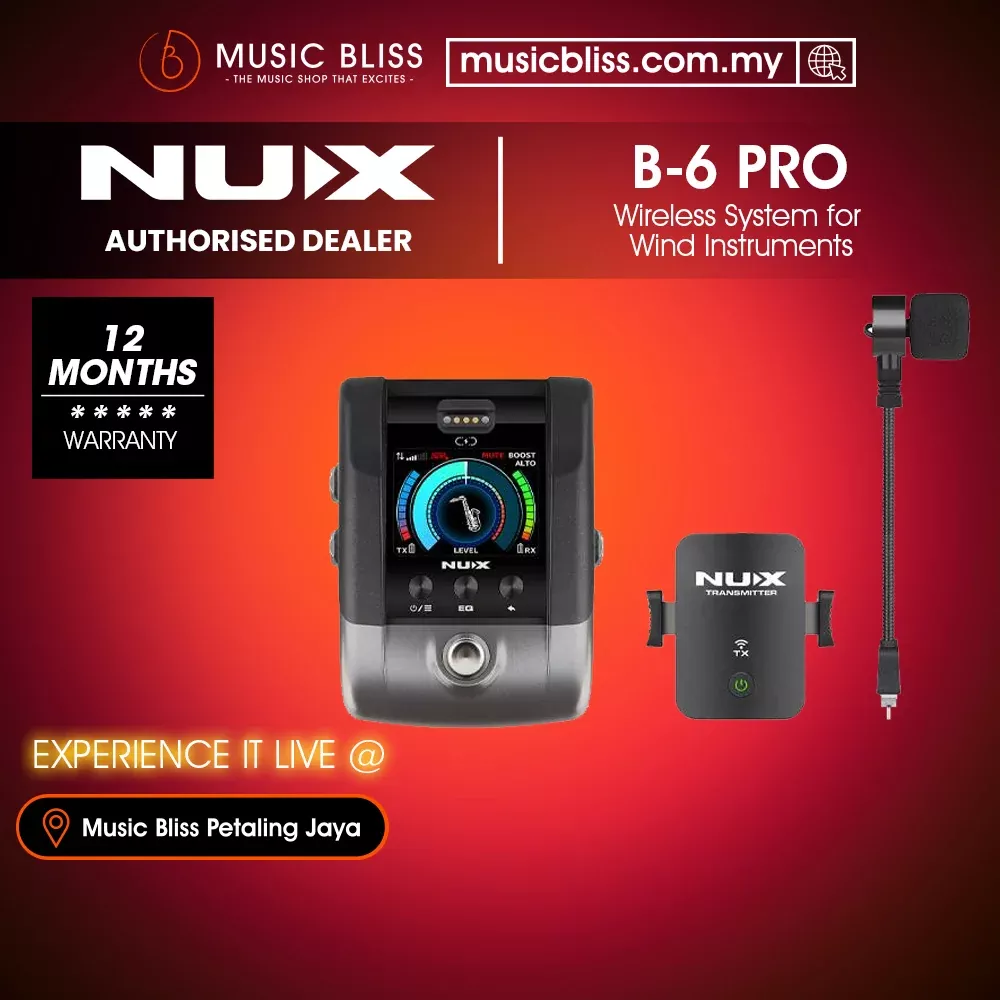

NUX B-6 Pro Wireless System For Wind Instrument

Description

NUX B-6 Pro Wireless System For Wind Instrument

The NUX B-6 PRO Wireless System for Wind Instruments is a compact yet powerful solution for performers who need freedom of movement without compromising sound quality. With signal transmission up to 165 feet and an ultra-low latency of just 3.6ms, it delivers professional-grade24-bit/48kHz audio—ensuring your performance is heard clearly, whether onstage or in motion. No cables. No boundaries. Just pure expression.

FEATURES

• Professional EQ Presets for Every Wind Instrument
• Built-in Multiple Functions
• Customize your own Boot-up picture

SPECIFICATIONS

Microphone

• Microphone Type : Condenser
• Polar Patterns : Cardioid
• Microphone Sensitivity : -51dB

TX (Transmitter) / RX (Receiver)

• Operating Frequency Band: 2400-2483.5MHz
• RF Output Power: Maximum 10mW E.I.R.P
• Transmission Distance: Up to 165 feet line-of-sight
• Latency: 3.6ms (Low Latency), 6.1ms (Default), 9.9ms (Stable)
• Sampling Depth / Sampling Rate: 24bit/48kHz
• Frequency Response Range: 20Hz-20kHz
• Maximum Audio Signal Output: 6.4dBV (SEND/OUTPUT)
• THD+N: <0.01% (Typical)
• Dynamic Range: 112dBA (SEND/OUTPUT)
• Battery Capacity: TX (transmitter) 3.7V/500mAh, RX (receiver) 3.7V/3000mAh
• Battery Life: TX (transmitter) up to 7 hours, RX (receiver) up to 11 hours
• Power: DC9V, 1A (minimum), negative tip power supplies (Receiver)
• Auto Power Off: Automatic power off after 10 minutes of no wireless connection
• TX (Transmitter) Dimensions (excluding microphone): 61(L)x60(W)x30(H)mm
• TX (Transmitter) Weight (excluding microphone): Approximately 60g
• RX (Receiver) Dimension: 93(L)x120(W)x60(H)mm
• RX (Receiver) Weight: 420g

Product Dimension Shipping Weight: 1.4 kg
