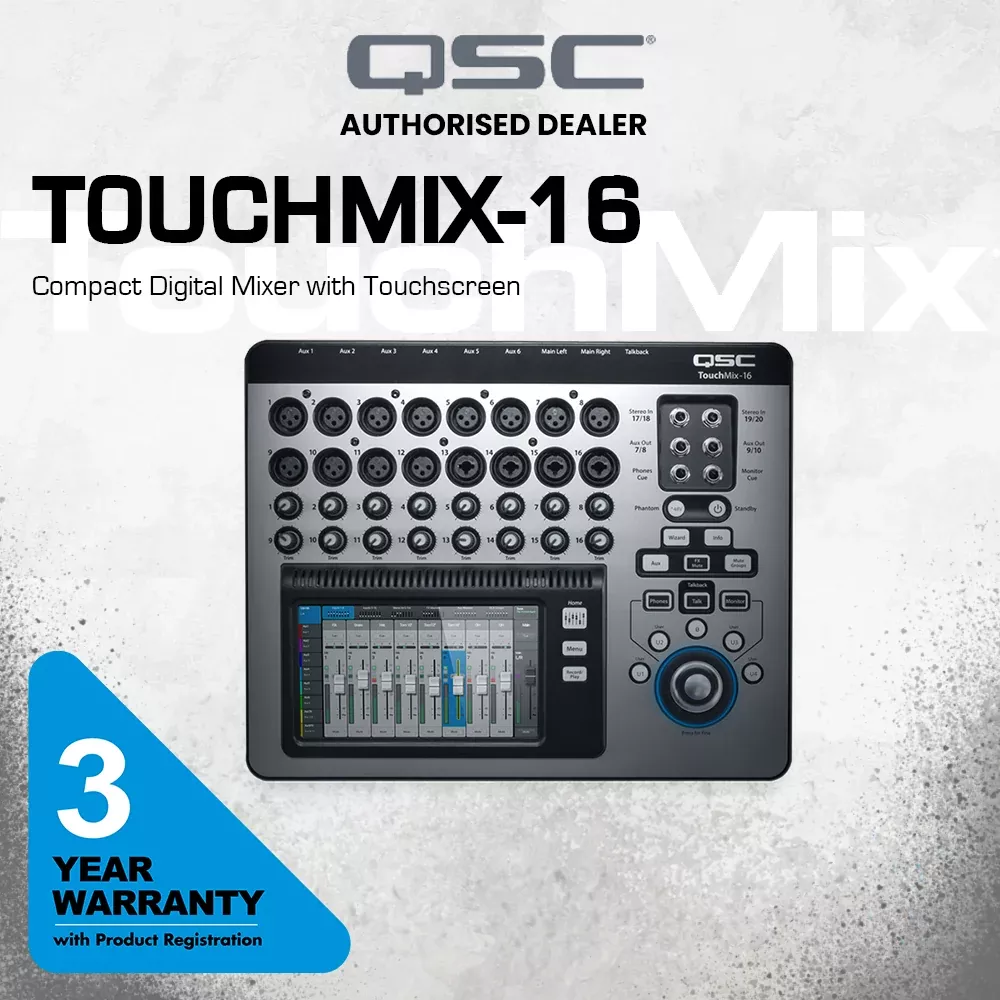

QSC TouchMix-16 Compact Digital Mixer with Touchscreen

Description

QSC TouchMix-16 Compact Digital Mixer with Touchscreen

You don’t need a large, complicated mixer to achieve pro-quality live sound, and you don’t need to compromise on power for a simple design that’s easy for anyone to use. With the QSC TouchMix series of digital live sound mixers, you’ve got serious connectivity, routing, and effects processing in an intuitive design. QSC’s TouchMix is versatile enough to manage a wide range of medium- and small-format mixing tasks, while its touchscreen interface and built-in user help make it easy for almost anyone to use. If your goal is to have outstanding sound quality and extensive mix capabilities in the smallest form factor possible, you’ll be impressed with the QSC TouchMix series.

FEATURES

• Large touchscreen for hands-on control and intuitive navigation
• Anti-feedback and Room Tuning Wizards speed up your workflow by simplifying repetitive and complex equalization tasks
• Built-in Real Time Analysis Tools identify sonic trouble fast with 2 individual Real Time Analyzers
• Record all input channels direct to an external hard drive, no computer required
• Outstanding sound quality from Class A mic preamps
• All outputs are equipped with 1/3-octave graphic EQ, 6-band parametric EQ, limiter, delay, and 8-band notch filter
• Mono mix outputs can also be configured as stereo pairs for stereo monitoring

SPECIFICATIONS

• Type : Digital Mixer
• Channels : 22
• Inputs – Mic Preamps : 4 x XLR-1/4″ combo, 12 x XLR
• Phantom Power : 16 Channels
• Inputs – Line : 2 x 1/4″ TRS
• Inputs – Other : Stereo USB / MP3 playback
• Outputs – Main : 2 x XLR
• Outputs – Other : 6 x XLR (Aux Out), 2 x 1/4″ TRS (Stereo Aux)
• Aux Sends : 8 x External, 4 x Internal (FX)
• Busses/Groups : 8 x DCA Groups (With Mute), 8 x Mute Groups
• Talkback : Yes, 1 x XLR
• Headphones : 2 x 1/4″
• USB : 2 x Type A
• EQ Bands : 4-band Parametric (Per Channel), 1/3-octave Graphic (Main/Aux Outputs)
• Effects : Reverb, Chorus, Delay, Echo, Pitch Correct
• Screen : Color Touch Screen
• Height : 2.3″
• Depth : 11.5″
• Width : 14.2″
• Weight : 5.9 lbs.

Product Dimension Shipping Weight: 6.0 kg
